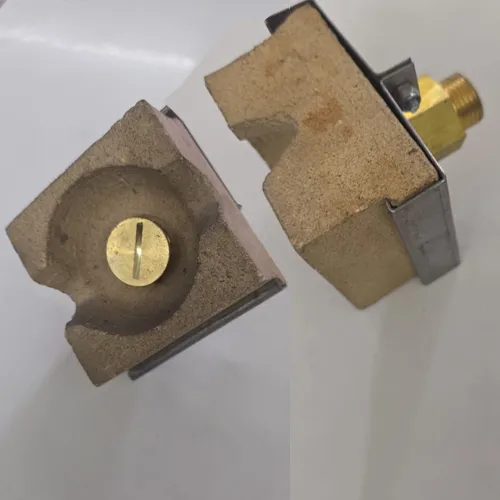

The RBB02080C is a high-performance radiant burner engineered for demanding industrial environments. By leveraging advanced ceramic honeycomb technology, this unit converts gas fuel into high-intensity infrared energy with exceptional efficiency. Designed for modularity and durability, it is the ideal choice for high-capacity dehydration, roasting, and curing systems.
Technical Specifications
| Model | RBB02080C |
| Heat Output | 2000 KCAL/hr |
| External Dimensions | 80mm x 80mm |
| Ceramic Face Area | 77mm x 77mm |
| Gas Inlet Connection | 1/2" BSP Male Threaded (Brass) |
| Clamping System | 1.2mm Stainless Steel (SS) |
| Fastening System | 3/16" CSK (Flush-Mount) |
Product Highlights
1. Superior Thermal Engineering
The 77x77mm industrial-grade ceramic block provides a massive surface area for radiant emission. This ensures an even "infrared glow" that penetrates products deeply and uniformly, significantly reducing processing times compared to traditional convection heating.
2. Heavy-Duty SS Construction
Unlike standard burners, the RBB02080C utilizes 1.2mm Stainless Steel (SS) for its primary retaining clamps. This choice of material prevents high-temperature oxidation and warping, ensuring the ceramic block remains perfectly seated even during 24/7 continuous operation.
3. Precision Air-Gas Mixing
Equipped with a precision-machined Brass Housing Nozzle, the assembly facilitates an optimal venturi effect. This results in a stable, clean-burning flame behind the ceramic face, maximizing fuel efficiency and minimizing carbon emissions.
4. Versatile Modular Design
With its compact 80x80mm footprint and 3/16" CSK (Countersunk) bolts, these units can be tiled together to create seamless heating banks. This makes them perfect for:
Modular Belt Dryers: Precise moisture control in dehydration.
Commercial Roasters: Uniform browning for nuts and grains.
Powder Coating: Rapid, even curing of industrial finishes.
Ordering Information
Each standard assembly kit includes:
01 Unit: 2000 KCAL Radiant Burner Block (Ceramic/Brass)
02 Units: IR Burner Block Clamps (77x77x1.2mm SS)
01 Unit: Brass Housing Nozzle Set (1/2" BSP)
Assembly Kit: 3/16" MS CSK Bolts
Why Choose Our Radiant Systems?
Fuel Savings: Up to 30% more efficient than open-flame burners.
Durability: SS components for extended service life in high-heat zones.
Maintenance: Easy-access modular components for rapid field servicing.
