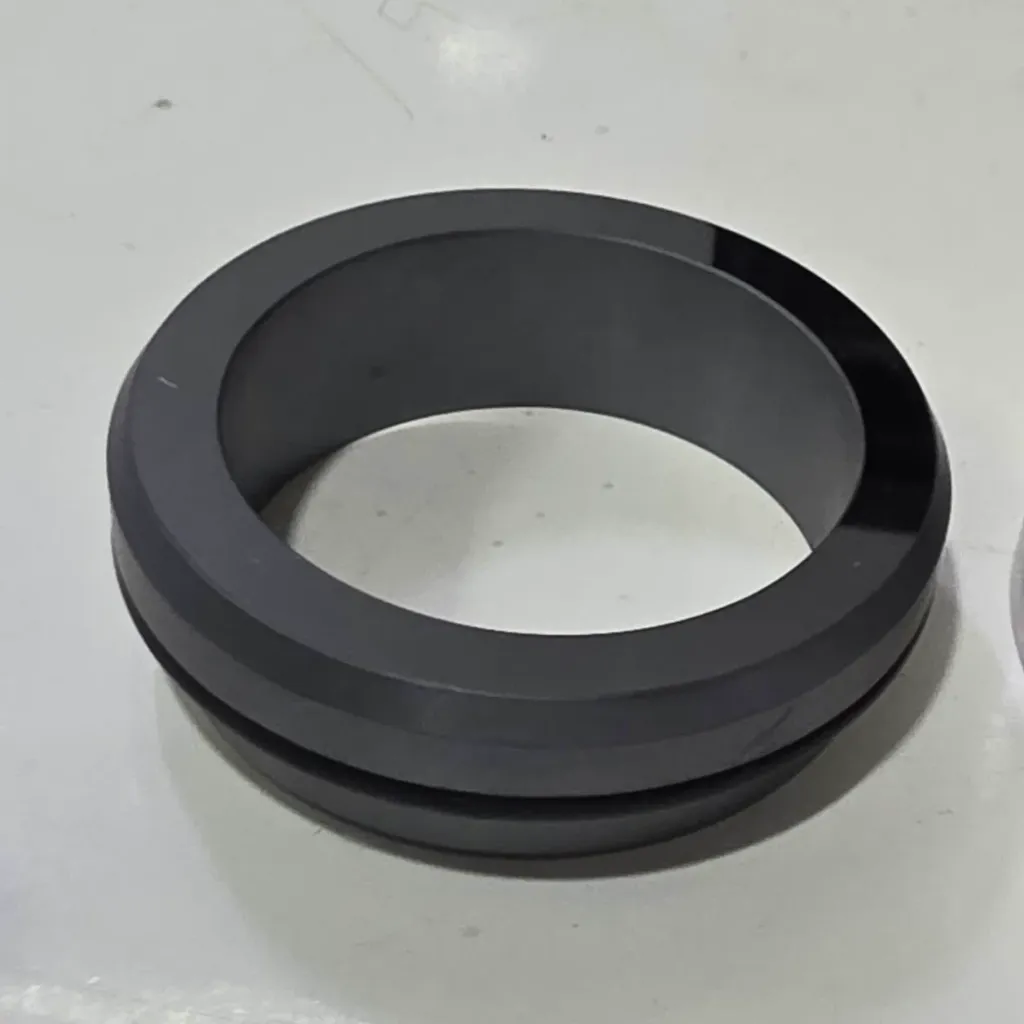

MS074056C | Mechanical Seal | Carbon Stationary Part | 74 x 56 x 23 mm
Dimensions & Geometry
| Dimension | Measurement | Description |
| Outer Diameter ($d_4$) | 74 mm | Fitment diameter for the housing/gland |
| Inner Diameter ($d_1$) | 56 mm | Internal clearance for the shaft/sleeve |
| Total Thickness ($L_4$) | 23 mm | Total depth including the elastomer seat |
| Profile Type | G60 / Type 21 | Standard stationary seat configuration |
Material & Construction
Seal Face: Resin-Impregnated Carbon. Offers excellent self-lubricating properties, reducing friction and wear during startup and dry-run periods.
Secondary Seal (Elastomer): Typically fitted with an L-shaped cup or O-ring (Viton/FKM or EPDM) to provide a static seal against the pump housing.
Chemical Compatibility: Highly resistant to water, oils, mild acids, and most industrial solvents.
Technical Performance
Operating Temperature: -20°C to +200°C (depending on the elastomer used).
Maximum Pressure: Up to 10 Bar (1.0 MPa).
Surface Flatness: $\leq$ 0.0006 mm (Helium Light Bands) to ensure a perfect mating surface with the rotary head.
Max Speed: 20 m/s.
Odoo Configuration Details
Product Name: Carbon Stationary Seat | MS074056C | 74x56x23 mm
Internal Reference (SKU): MS074056C
Product Category: Mechanical Seals / Stationary Parts
Unit of Measure: Units
HS Code: 848410 (Gaskets and similar joints of metal sheeting)
Installation Guidelines
Housing Inspection: Ensure the gland or housing bore is clean and free of scratches or corrosion.
Lubrication: Use a neutral lubricant (soap water or glycerin) on the outer elastomer cup/O-ring. Do not use petroleum-based grease on EPDM rubber.
Squareness: Press the seat into the housing using a soft-faced tool or a flat plate to ensure it sits perfectly square to the shaft axis.
Face Protection: Avoid touching the polished carbon face with bare fingers; oils from the skin can attract dust and cause premature wear.
