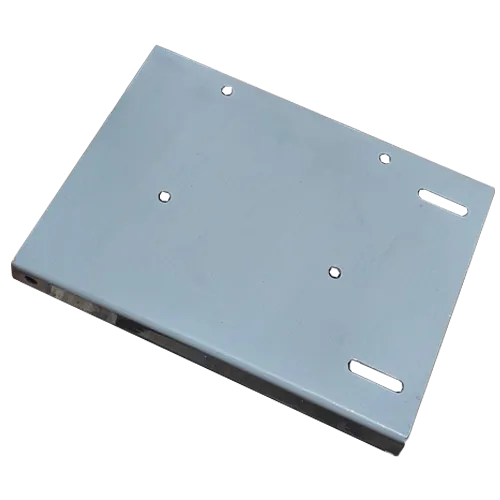

This heavy-duty mounting plate is engineered for precision alignment and secure seating of high-capacity blower motors. Specifically designed for the Robust India LR-series continuous roasting systems, it ensures structural integrity and vibration dampening during high-speed industrial operations.
Technical Specifications
| Attribute | Specification |
| Part Name | Blower Motor Mount Plate (LR000) |
| Compatibility | 10 HP Blower Motors |
| Machine Models | LR006 & LR010 Continuous Roasters |
| Material | Milled Steel (MS) |
| Dimensions | 465 mm x 425 mm |
| Thickness | 4 mm |
| Forming | Dual-side 40 mm structural bands for rigidity |
| Finish | Industrial Grade Protective Paint |
Key Features
Reinforced Structural Design: The 40 mm side bands significantly increase the moment of inertia, preventing plate flex or warping under the torque of a 10 HP motor.
Precision Slotting: Includes integrated mounting holes and elongated tensioning slots to allow for easy belt adjustment and motor alignment.
Vibration Resistance: The 4 mm milled steel construction provides a stable mass that helps minimize resonance and mechanical wear on the blower assembly.
Direct OEM Fit: Predrilled and formed to match the chassis specifications of the LR006 and LR010 roasting lines for seamless replacement.
